PIVOLTA: MODULAR TIMBER FRAMES FOR SOLAR CARPORTS

Our Pivolta modular timber frames for solar carports are designed to meet growing demand for renewables and help businesses comply with new regulations aimed at boosting solar thermal and photovoltaic energy production.

Our timber carport frames are compatible with rooftop PV panels (not included). The mechanical strength of these French Douglas fir glulam makes them an effective alternative to steel.

Under Article 40 of Law No 2023-175 of 10 March 2023, outdoor car parks in France that are bigger than 1 500 m² have to install solar canopies over at least half of their surface area. Our Pivolta carports comply with this regulation and also have a lower carbon impact than steel carports.

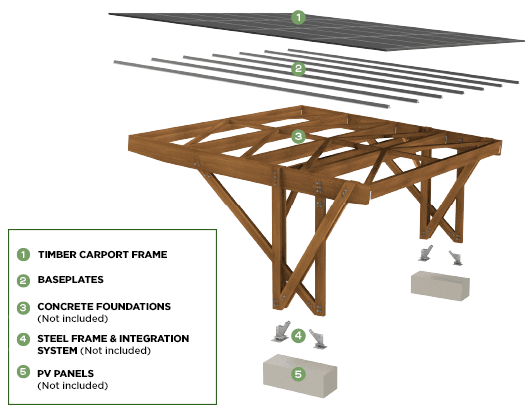

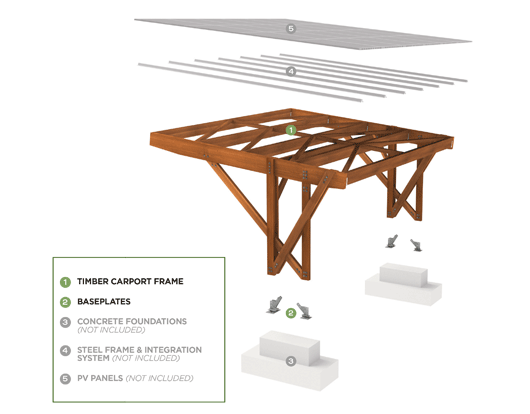

pivolta schema solar carports timber piveteaubois

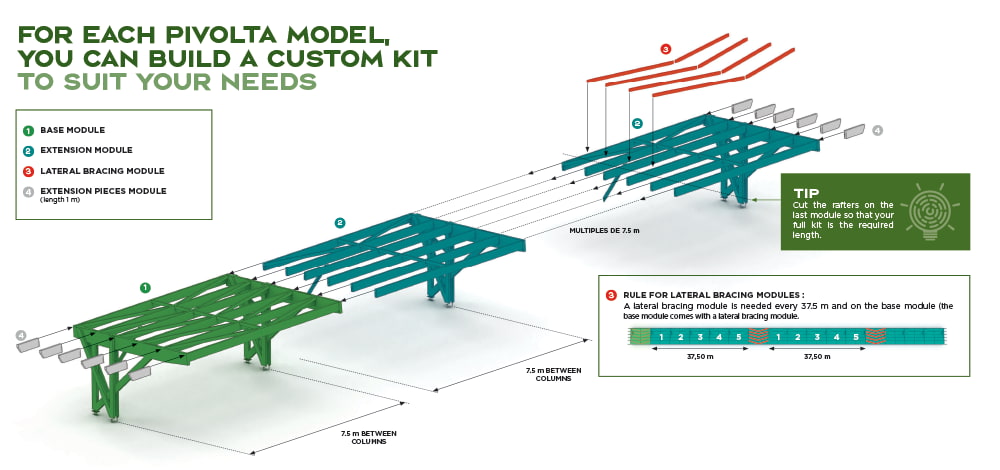

Our Pivolta carports come in a range of complete kits, with bracketry included:

  1. base module
  2. extension module
  3. lateral bracing module
  4. extension pieces module

Our Pivolta carports come in a range of complete kits, with bracketry included

THE BENEFITS OF PIVOLTA SOLAR CARPORTS

The wooden PIVOLTA solar carports is a low-carbon solution that respects the environment.

PRODUCT BENEFITS

▲ Entirely made in France from French Douglas fir
▲ A stylish, low-carbon solution
▲ A standardised system with 7.5 m modules
▲  Optimised delivery times
▲  No space constraints: easy to park under, plenty of space for opening doors, etc.
▲  Safe and easy to load car boots
▲  Lighter foundations above the ground
▲  Compliant with Eurocodes
▲  Pressure treated in a choice of 2 colours to coordinate with your project (grey or brown)

4 TIMBER CARPORT MODELS

Our timber carports are available in 4 different models so that there’s something to suit every car park configuration.

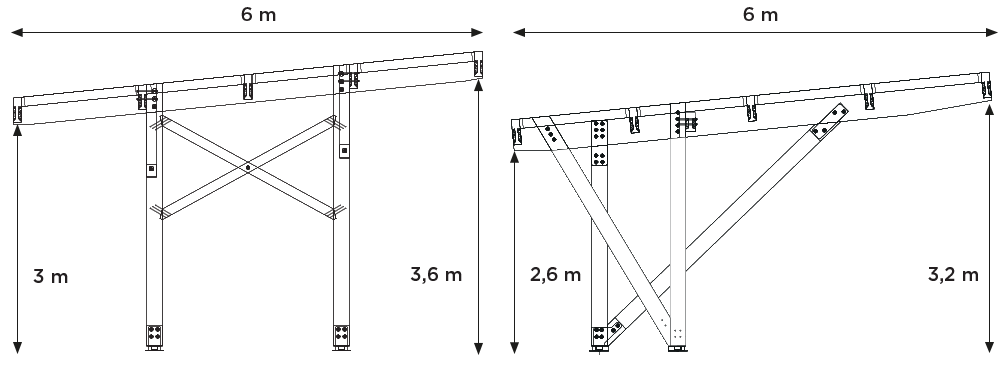

Single monopitch roof carport

Perfect for linear car parks. Easy to open car doors.

Sigle monopitch roof carport timber Pivolta Piveteaubois

CARPORT ROOF
SURFACE AREA : 45 m²

BIOGENIC CARBON SEQUESTERED*
PER CARPORT: 2,676 kg CO2

CARPORT ROOF
SURFACE AREA : 45 m²

BIOGENIC CARBON SEQUESTERED*
PER CARPORT: 3,281 kg CO2

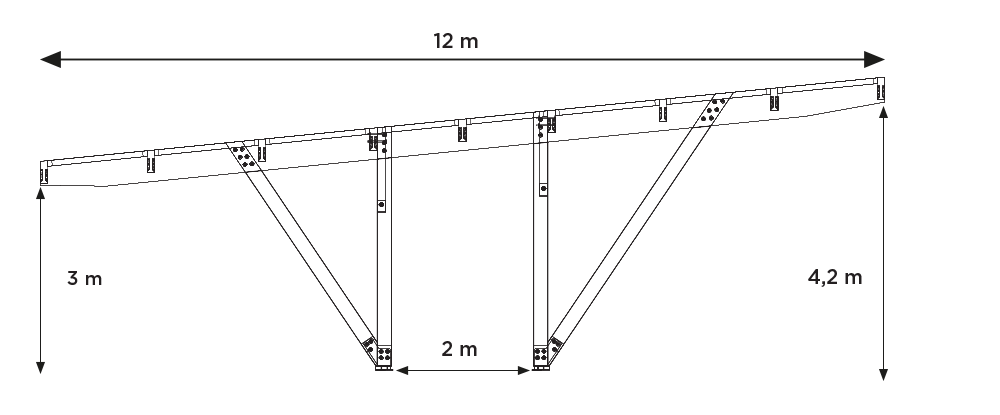

Double monopitch roof carport

Perfect for two rows of parked cars with pedestrian access between rows.

Sigle monopitch roof carport timber Pivolta Piveteaubois

CARPORT ROOF
SURFACE AREA: 90 m²

BIOGENIC CARBON SEQUESTERED*
PER CARPORT: 5,049 kg CO2

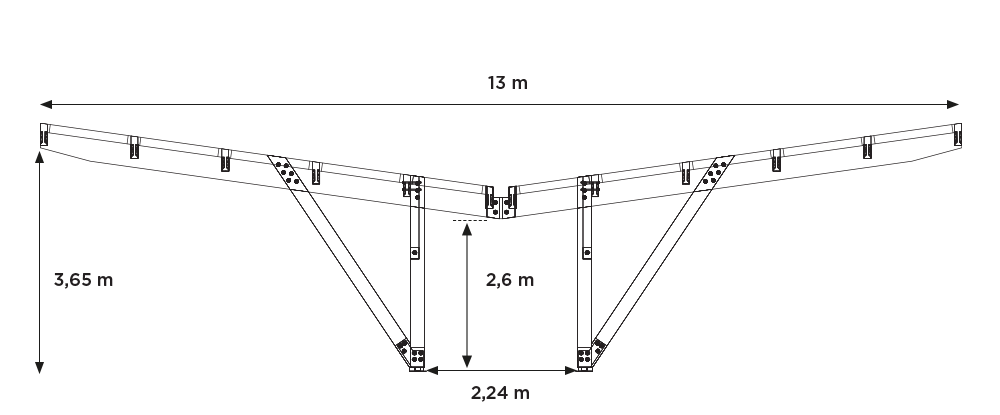

Dual-pitch valley roof carport

Perfect for two rows of parked cars. Offers the best energy production for EAST/WEST orientations.

Sigle monopitch roof carport timber Pivolta Piveteaubois

CARPORT ROOF
SURFACE AREA: 97.5 m²

BIOGENIC CARBON SEQUESTERED*
PER CARPORT: 6,049 kg CO2

TECHNICAL CHARACTERISTICS

TIMBER SPECIES : Douglas fir

COLOUR : Brown or grey pressure-treated

PRODUCT TYPE : Glulam

USE : Up to Use Class 3.2

SURFACE FINISH : Planed

INSTALLATION : On concrete blocks

COMPOSITION :
Douglas fir glulam frame
Hot-dip galvanised steel bracketry (black powder-coated joist hangers & screws as standard. Stainless steel joist hangers upon request).

COMPATIBLE WITH ALL TYPES OF ROOFTOP PV PANEL (NOT INCLUDED)

REINFORCED CARPORTS (UPON REQUEST): :
Standard Pivolta range suitable for 75% of French territory. For areas with harsher weather conditions, please contact us to explore the feasibility of a reinforced version.

DATA SHEETS :
Data sheets for each type of carport available on request

2D AND 3D DRAWINGS :
3D model, construction drawings and detailed drawings provided following confirmation of your order
